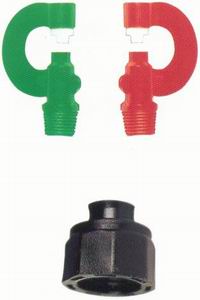

  • Ideal for low volume irrigation in vegetables , fruit trees , flowers , greenhouses , nurseries cooling and frost protection and garden irrigation .
  • Optimum performance efficiencies are achieved at lower operating pressures which reduce pumping costs.

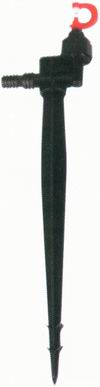

  • Available pre-assembled on stake with micro tube.
  • Available with 8 mm male threaded base which can be installed into a PVC riser fitting.







Mini - sprinkler performance table

Body color

Nozzle Dia

Required Filtration (Mesh)

 Pressure FlowRate Coverage diameter precipitation rate ,

mm/h
Bar PSI KPa LPH GPM
Red

1.6 mm

Orifice

 100 0.5 7.2 50 59 15.7 1.9 21.4
1.0 14.5 100 83 21.8 2.1 24.8
1.5 21.8 150 101 26.8 2.2 25.9
2.0 29.0 200 115 30.5 2.4 25.7
2.5 36.3 250 125 33.0 2.5 24.6
3.0 43.5 300 130 34.4 2.7 23.1
3.5 50.8 350 131 34.6 2.8 21.2



Notes :

  • Mini - Sprinklers are recommended for light sandy loam and all sandy soils.

  • Mini - Sprinklers are not recommended for clay or loamy soils.




  • Ideal for moderate volume irrigation.
  • Practical and easy to assemble.
  • Available with threaded base or with stake.














Pressure ,

bar

 Diameter,

m

 Flow Rate,

L/h

 Wetted area,

m2

 Precipitation

rate , mm/h
0.5 1.86 109.8 2.717 40.41
1 2.93 159.2 6.742 23.61
1.5 3.41 196.8 9.133 21.55
2 3.52 219.1 9.731 22.52
2.5 3.6 244.1 10.178 23.98
3 3.6 263 10.179 25.84
