Features and
Specifications :

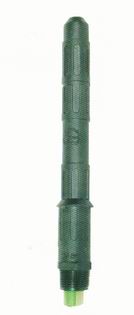

- Revolutionary new concept sprinkler.
-
Manufactured from stable engineering
plastic and silicon tubing.
-
Pops up with incoming water pressure and
pushing the tubing out to start spraying action.
-
Pops down immediately as the water
pressure is released.
-
No moving parts ,maintenance free
-
Economical
-
Large droplet size enables operation in
windy condition .
-
Even with large droplet size no damage to soil structure as the droplet
falls down with low energy .
-
Low evaporation and low wind drift losses
-
Silicone tube is protected against
vandalism and possible damage due to birds.
Application
:
- Ideally suitable for
irrigation of closely spaced crops like sugarcane ,vegetables ,oil
seeds ,onions ,potato, wheat ,etc.
- Suitable for landscape and
turf irrigation.
Riser Technical
specification :
- One sprinkler uses 730 liters
per hour .The flow controller maintains the discharge within 5 %
from 1.8 to 6 Bar .
- The recommended minimum
pressure at sprinkler is 2 Bar .
- The gross precipitation for 11
x 13 m is 5 mm per hour , and for 12 x 14 m is 4.2 mm per hour .
- Filtration : A 500 micron
screen filter is strongly recommended .
|
